DEEP SKY BLACK

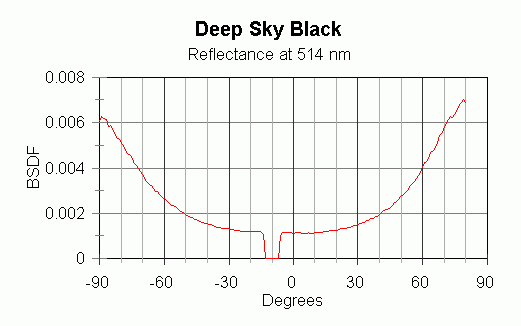

Bidirectional Scattering Distribution Function Data, 514 nm




<< Back

Test Information

No. dsb_05.514   05/11/00 02:19:16 PM   Signature file: 5110003.51
Deep Sky Black

Incident angle (deg): 5
Wave length (um): 0.514
Sample type (S,T or R): R
Specular T or R: 6.83E-07
Sweep direction: -
Total signal (W): 9.35E-10
X spot position (mm): 0
Y spot position (mm): 0
Sample alpha pos (deg): 0
Aperture type (C or S): C
Files averaged: 1
Sample spot dia (mm): 5

* This calibration data courtesy, Kaiser Electronics

Excel data file
